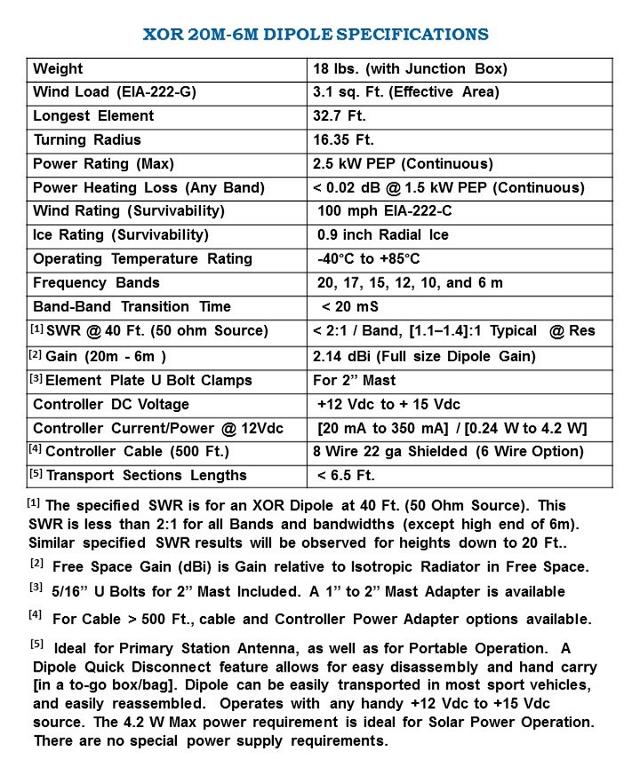

Rotatable Dipole Specifications

Last updated: 22 September 2025

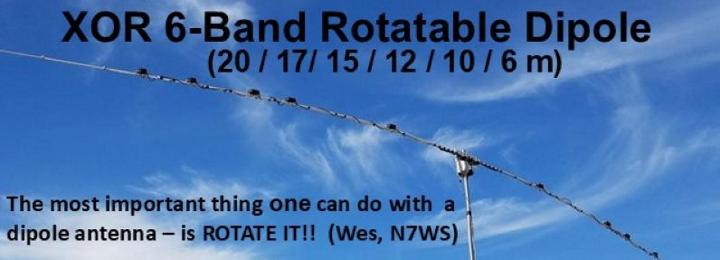

“The most important thing one can do with a dipole antenna—is rotate it”   Wes N7WS

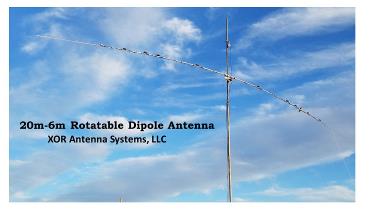

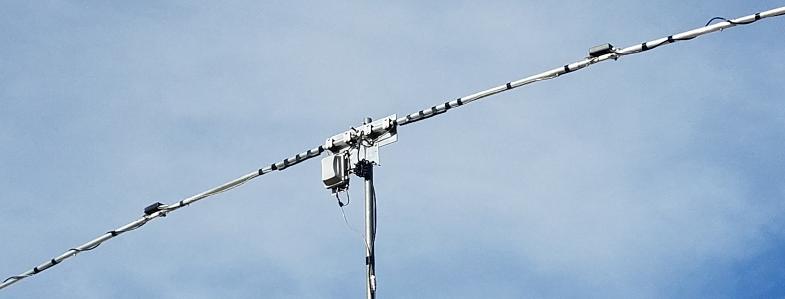

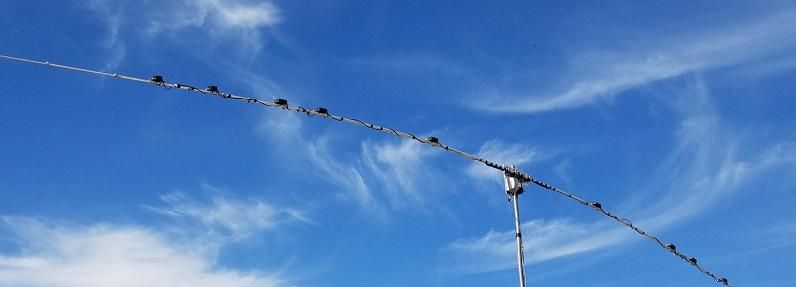

This amateur radio rotary dipole antenna is robust with an operating temperature range from -40°C to +85°C and features a 2.5 kW PEP (continuous) input power rating and a survivability wind rating of 100 mph.  This XOR dipole antenna is lightweight for easy installation and easy transport.

Enhance Your Multiband HF Capabilities

At XOR Antenna Systems, LLC, we design and manufacture next-generation multiband HF antennas that redefine efficiency, reliability, and performance. Our innovative antenna solutions leverage Switch-Mode Technology -- a breakthrough approach --  that dynamically and incrementally adjusts antenna elements to multiple resonant frequencies. All achieved without relying on traps, excess elements or mechanical complexity, such as motor driven elements.



Eliminate Compromise With Smarter HF Solutions

Traditional antennas often require cumbersome mechanical tuning systems, multiple elements or traps to support multi-band operation. Our multiband HF antennas eliminate these compromises. Thanks to XOR’s Switch-Mode Technology, each element in our systems can adapt to function as a half-wavelength radiator on multiple amateur radio bands. This means cleaner signals, less noise, and maximum gain across the HF spectrum — without the complexity, weight and fragility of more conventional multiband designs.



Expand Your Range With Compact, Rotatable Antennas

Our rotatable dipole antennas provide the ideal balance between size and performance, especially for radio operators with limited space. Unlike static wire antennas or heavy Yagis, XOR’s rotatable dipoles deliver directional gain operation while maintaining a low wind profile. With frequency-adjustable elements, these lightweight antennas provide multiband coverage from a single, sleek structure — making them perfect for home stations, portable operations, or DXpeditions.



Maximize Reliability With Maintenance-Free Operation

XOR’s technology removes the need for moving parts, traps, or excess elements — common failure points in traditional multiband HF antennas. With fewer mechanical components and a switch controlled network, our antennas are not only more rugged, but also require virtually zero maintenance. Once installed, you can operate worry-free in harsh environments, from coastal zones to high elevations, and in high wind or icy conditions.



Choose Innovation Built by Radio Operators

XOR Antenna Systems, LLC combines deep technical knowledge with real-world operating experience. We understand what matters most — reliable performance, simple installation, and exceptional quality with low maintenance.  Every product we offer, from our multiband HF antennas to our advanced multiband rotatable dipole antennas, is engineered with precision and tested in real world conditions.



Discover the Future of Amateur Radio

Whether you’re chasing DX, operating contests, or simply enjoying the hobby, XOR Antenna Systems, LLC delivers unmatched versatility and performance. Explore our cutting-edge solutions and elevate your station with antennas that work reliably and smarter, not harder.

Ready to upgrade? Contact us today and find the perfect antenna system tailored to your needs.

XOR Rotatable Dipole Antenna for Sale

Frequently Asked Questions



What kind of support does XOR Antenna Systems, LLC offer after purchase?
XOR Antenna Systems, LLC offers dedicated customer support to assist with installation, troubleshooting, and product inquiries. Customers can reach out via email or through the contact page on the website. Support is typically provided by knowledgeable staff who are also licensed radio amateurs. Additionally, documentation and product guides or manuals, are included with every antenna, with updates made available online as needed.



Can XOR antennas support high-power or QRP operation?
Yes, we design our antenna systems to accommodate a wide range of power levels up to at least the legal U.S. limit.  Built with robust materials and switches suited for HF high-power operations, they are capable of handling both low-power (QRP) and higher-power amateur usage. Although the precise power ratings may vary with each model, the rugged design supports dependable performance across common operating conditions.



Do XOR’s antennas require regular maintenance or tuning?
One of the standout features of XOR’s multiband products is their minimal maintenance requirement. Thanks to the absence of mechanical components like traps, rotating gears and motors moving elements in UV dependent fiberglass — XOR antennas remain resonant and reliable over time with virtually no upkeep. This makes them a dependable choice for permanent installations and installations in remote or harsh environment.

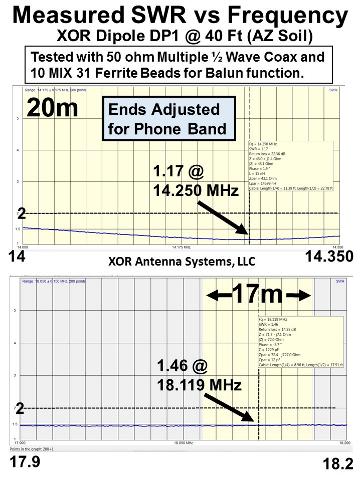

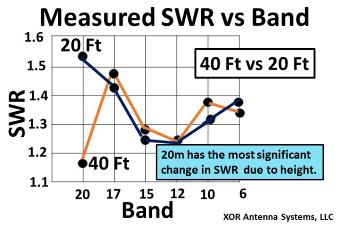

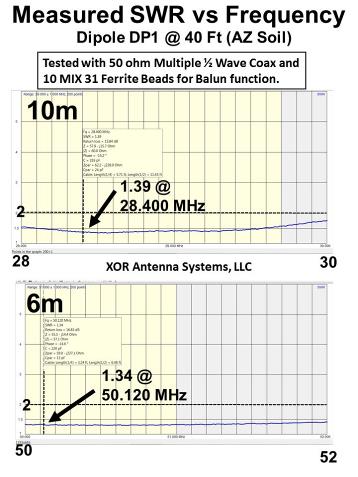

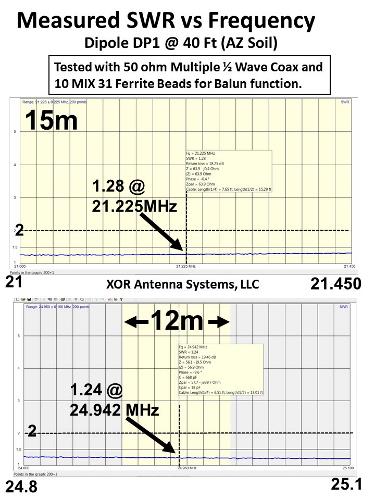

One class of XOR multiband HF antennas are rotatable dipole antennas.  XOR multi-band dipole antennas provide excellent SWR across all 6 bands, including 20m through 6m.
